Product Name: High-Speed Rotary Disc Atomizer
Common Name: DISCO Atomizer / Rotary Bell
Disc Speed: 10,000 – 60,000 RPM
Electrostatic Voltage: 60 – 100 kV
Transfer Efficiency: Up to 95%
Shaping Air Pressure: 0.1 – 0.4 MPa
Application: High-volume, high-finish coatings, such as automotive topcoats

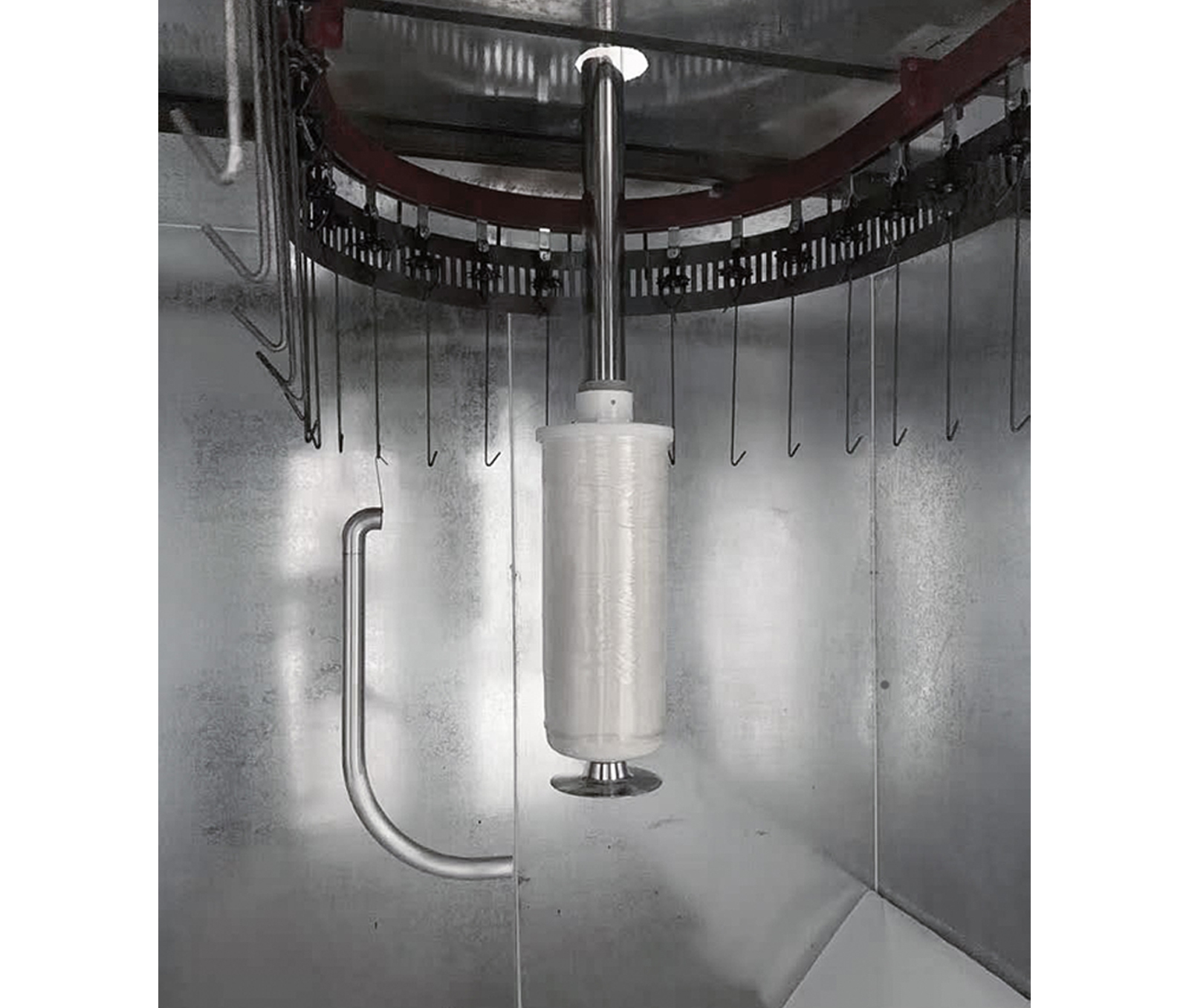

System Overview: The atomizer is powered by a High-Speed Turbine/Air Motor using shaping air to drive the Atomizing Disc/Cup. Key components include the Turbine Housing and Internal Air Bearings for friction-free rotation, a Central Supply Tube delivering fluid paint to the disc center, the Applicator Body housing the system, and an Integrated Electrode with High-Voltage Connection to charge the atomized dropletS
